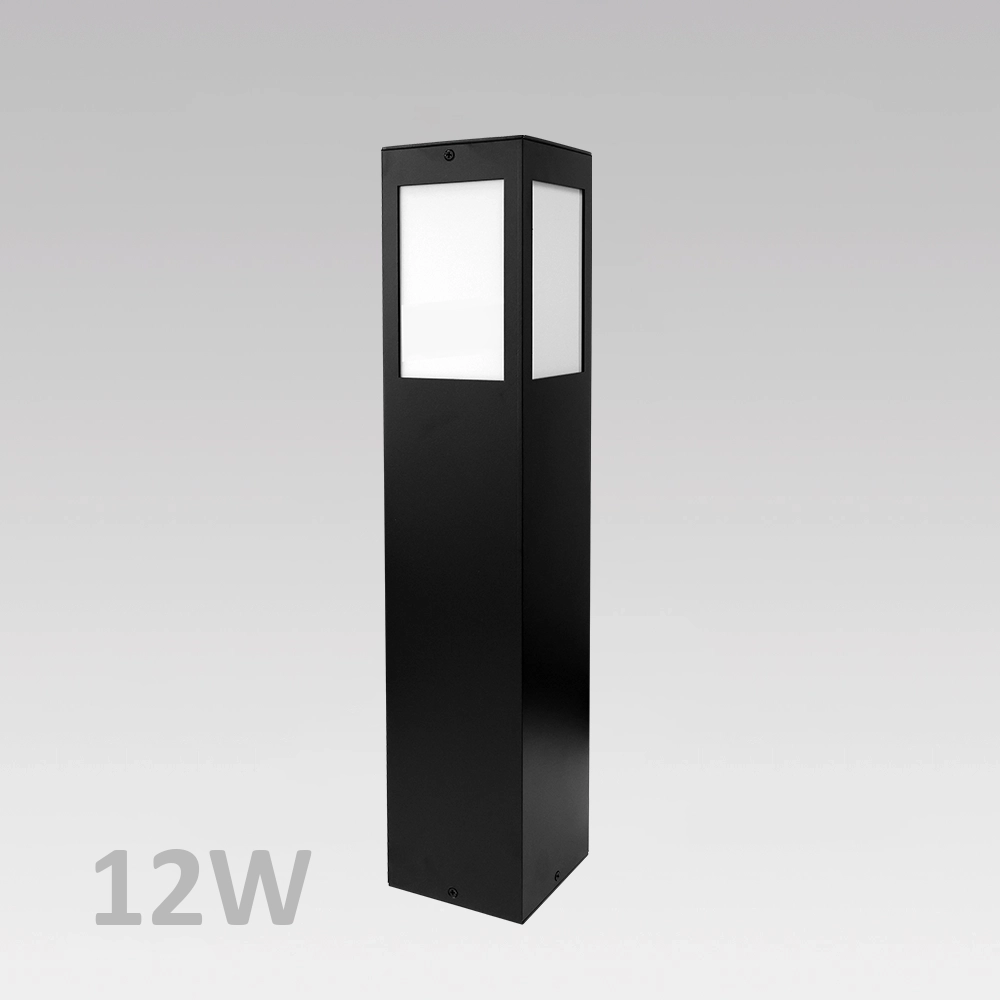

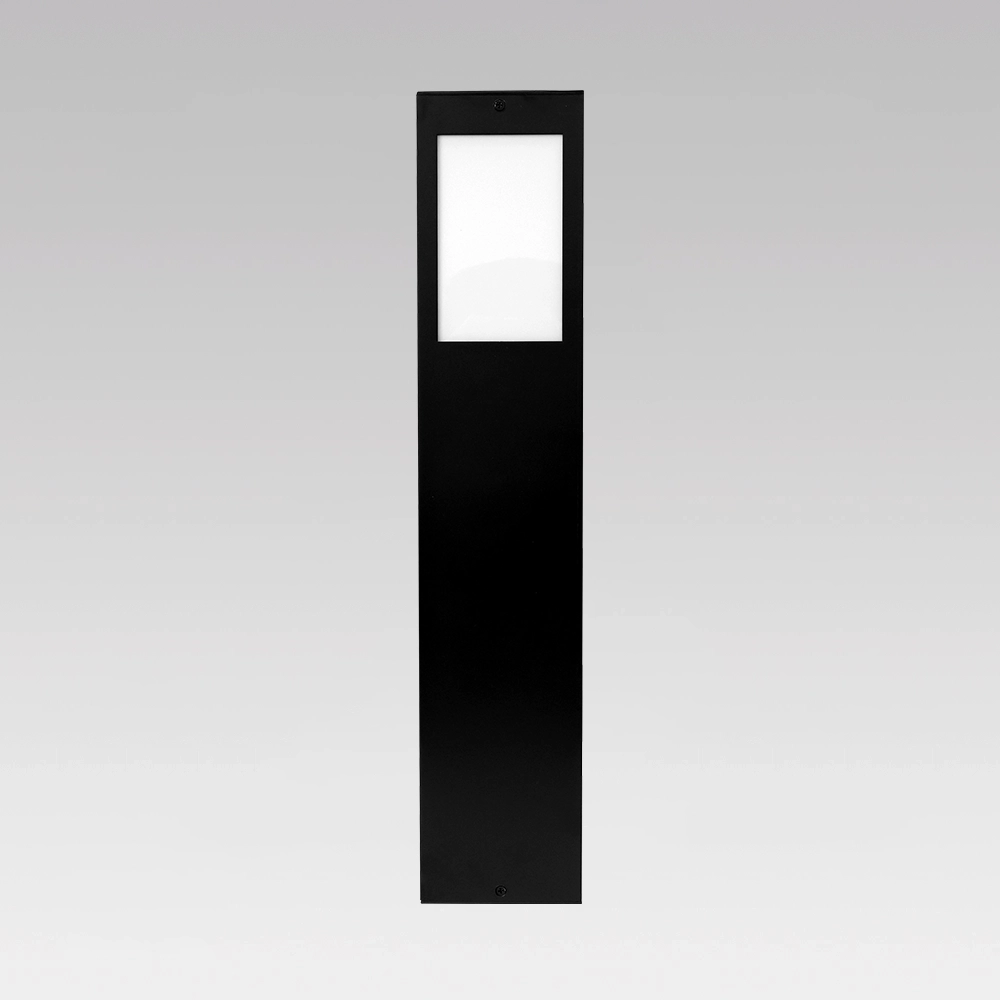

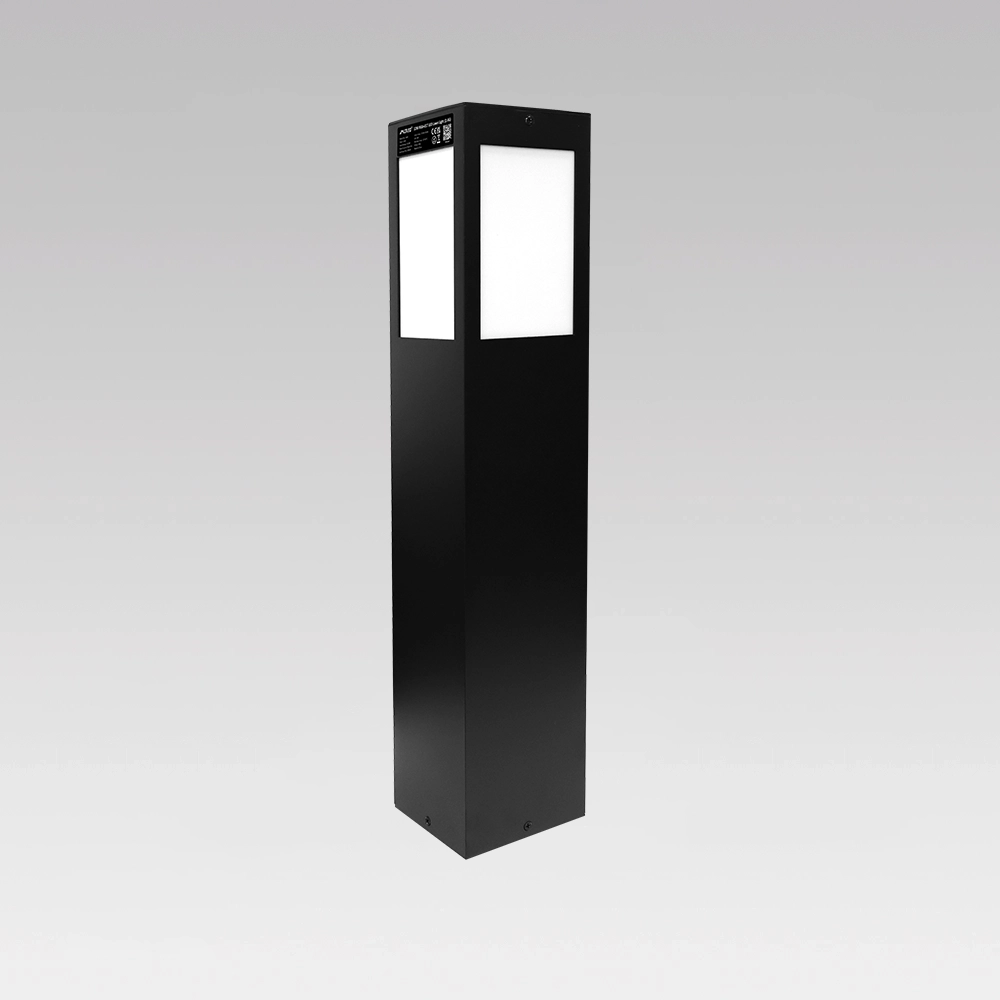

12W RGB+CCT LED Lawn Light(2.4GHz)
Lawn Light
Functional Features
4096-Level Dimming
Delivers ultra-fine, flicker-free adjustment for seamless and comfortable lighting transitions.
DND Mode
Intelligently remembers your light settings. In case of sudden power loss, your lights return to their previous state once power is restored, saving energy and giving you peace of mind.
Overheat Protection
Real-time temp monitoring with auto power adjustment for safe operation.
IP66

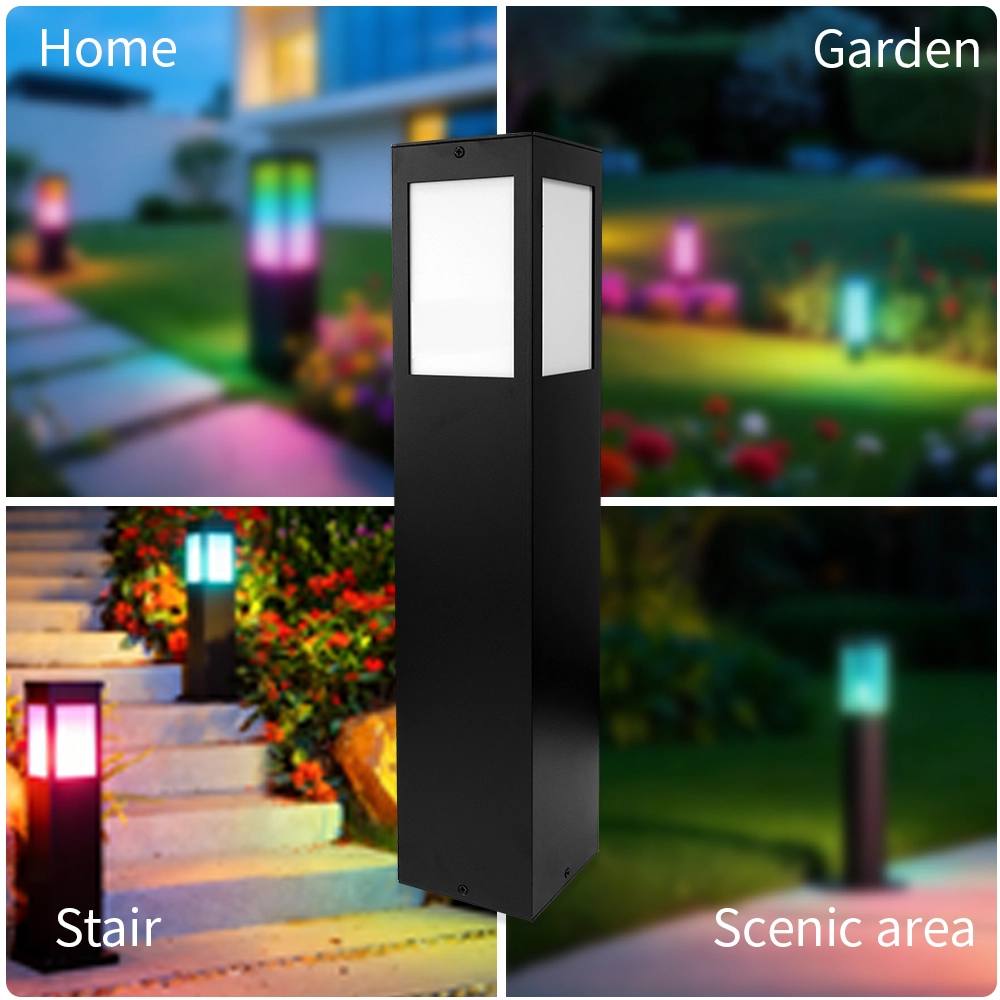

Dustproof and waterproof, suitable for multiple scenarios
Remote Control
Functional Features
16 Million Colors
Full-Spectrum Color Control — precisely tailor your lighting atmosphere with adjustable RGB, saturation, brightness
4 DIY Scenes
Fully save your lights on/off status, color, brightness, and dynamic modes. Recall any preset scene with a single tap, like Movie Mode, Reading Mode, or Sleep Mode, for effortless ambiance control.
Minimum Brightness Setting
Supports 1%–50% minimum brightness setting
DIY Fade-in/Fade-out Time
Supports customizable fade-in/fade-out time from 0–3 seconds, creating a comfortable lighting experience.
9 Dynamic Modes (2.4 GHz RF Remote Only)
Built-in 9 dynamic lighting effects to create a rich light atmosphere.

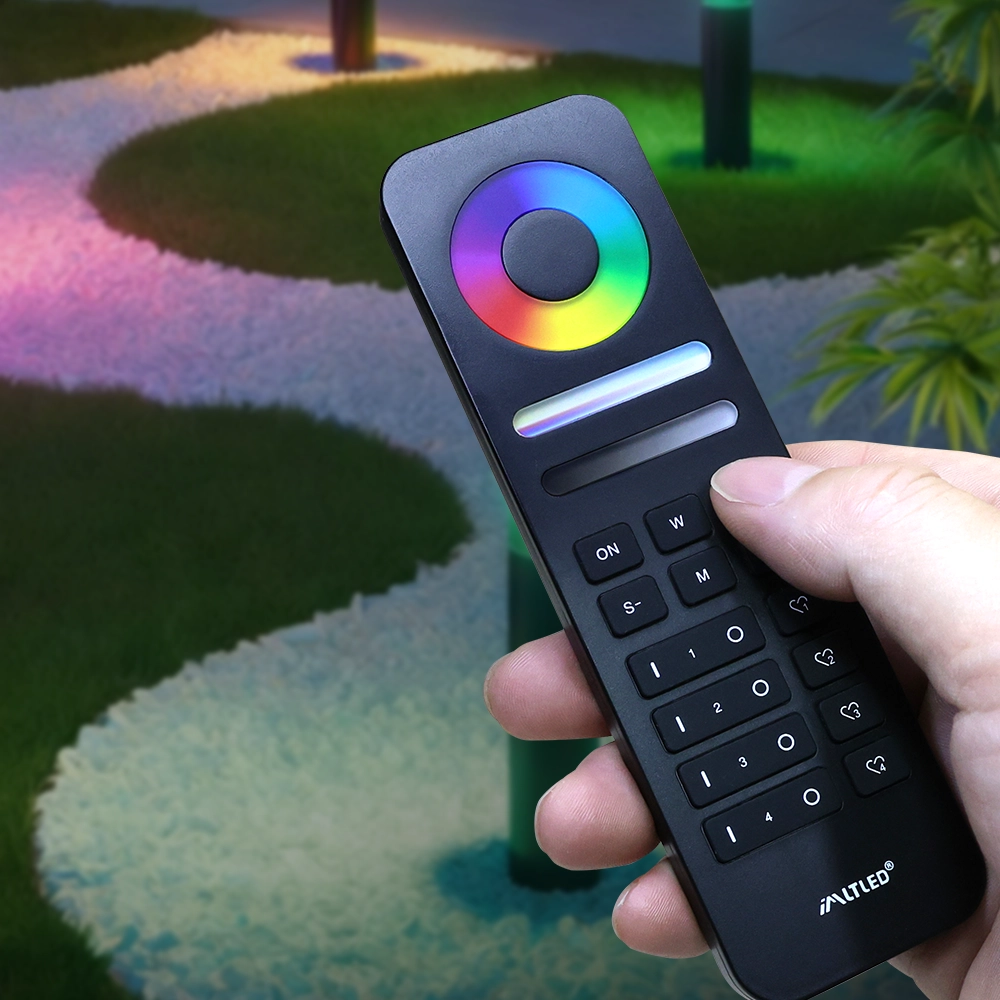

2.4 GHz RF Remote Control
Stable 30 m signal with no delay — works through walls.

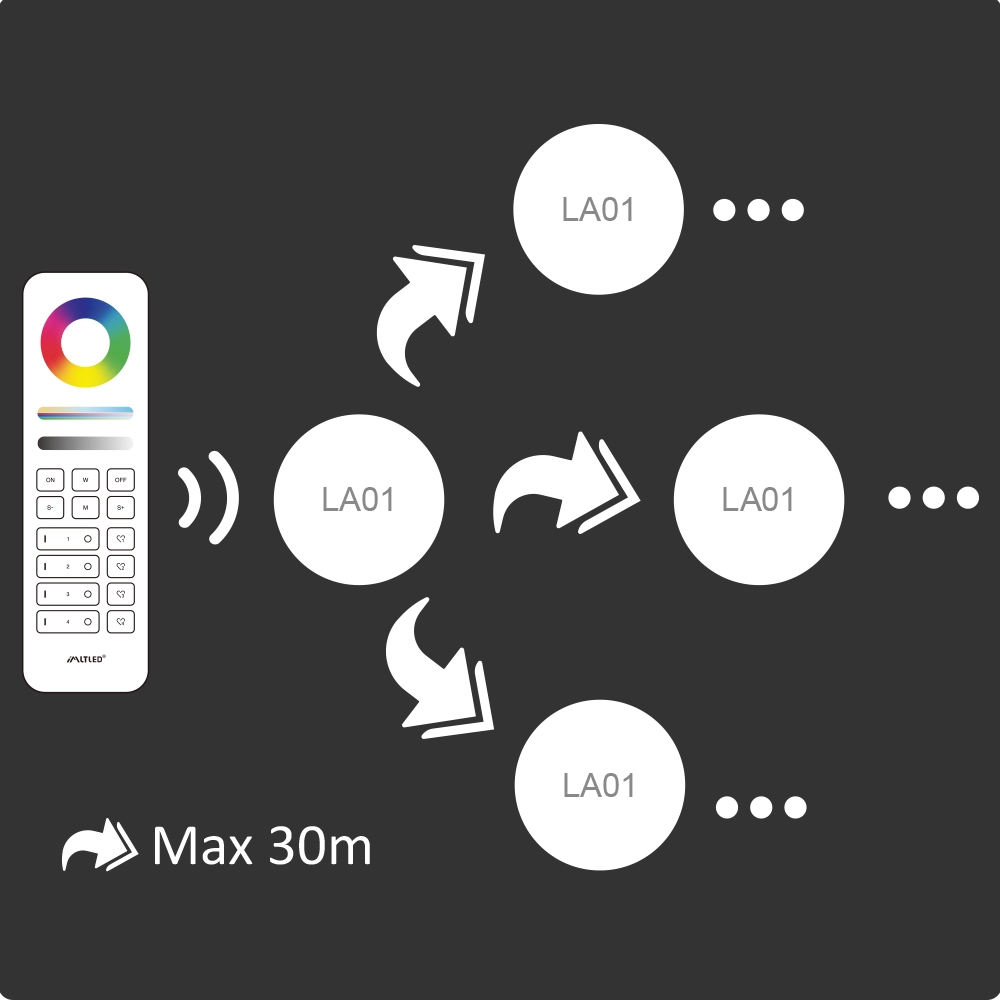

Automatic Signal Forwarding (2.4 GHz RF Remote Only)
The LA01 can automatically forward received remote signals to other LA01 within a 30 m range, enabling signal relay. The remote control range can be continuously extended.
Automatic Synchronization (2.4 GHz RF Remote Only)
Within a 30 m range and in the same dynamic mode, all lights controlled by the same remote remain perfectly synchronized.
Parameters
| Product Name: | 12W RGB+CCT LED Lawn Light(2.4GHz) |
| Model No.: | LA01 |
| Input Voltage: | DC24V |
| Rated Current(Max): | Max 0.5A |
| Power: | 12W |
| Standby Power Consumption: | 0.2W |
| CRI: | >80 |
| Color Temp.: | 2700K-6500K |
| Luminous Flux: | 500LM |
| Luminous Efficiency: | 45LM/W |
| Illumination Distance： | 5m |
| 2.4G RF Distance： | 30m |
| Working Temp.： | -20~45°C |
| Waterproof Rating： | IP66 |
| Lamp Body Material： | Aluminum + PC |
Connection Diagram
1. Please cut off power before wiring device.
2. Please check the input voltage.

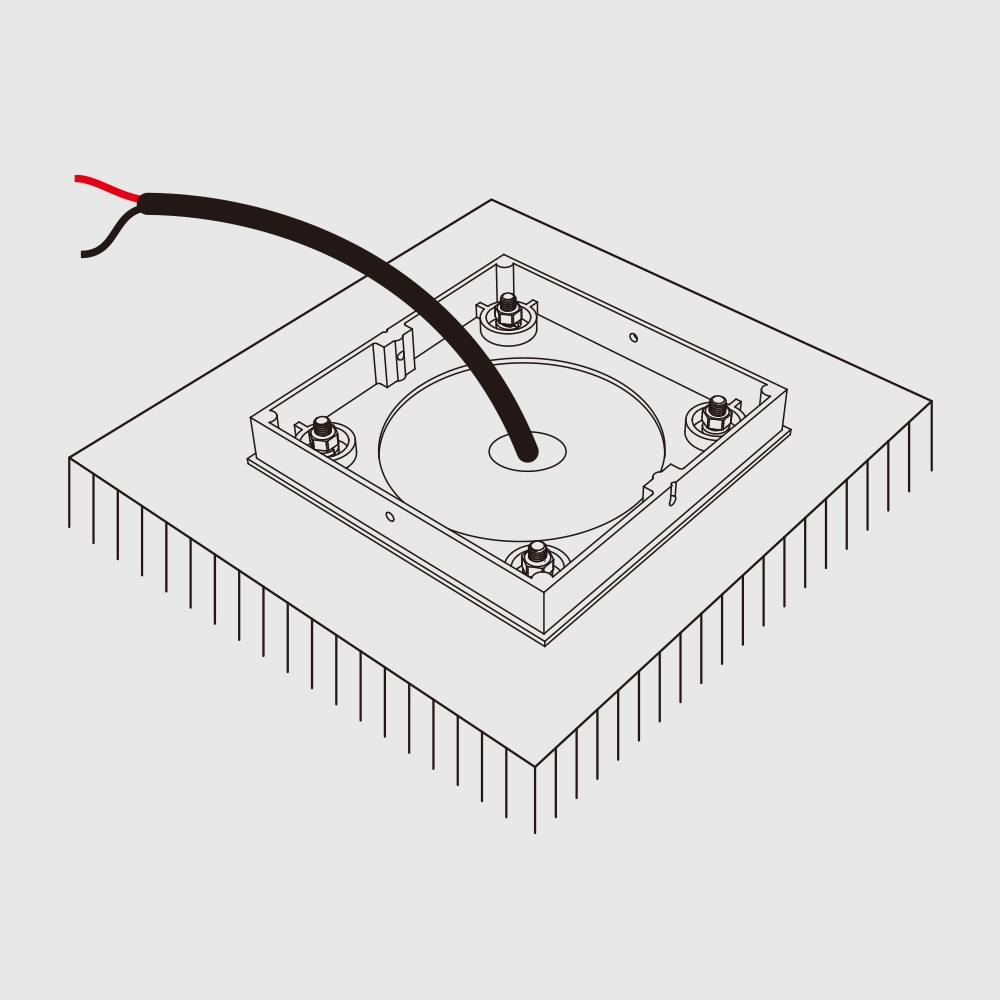

1.Install the base

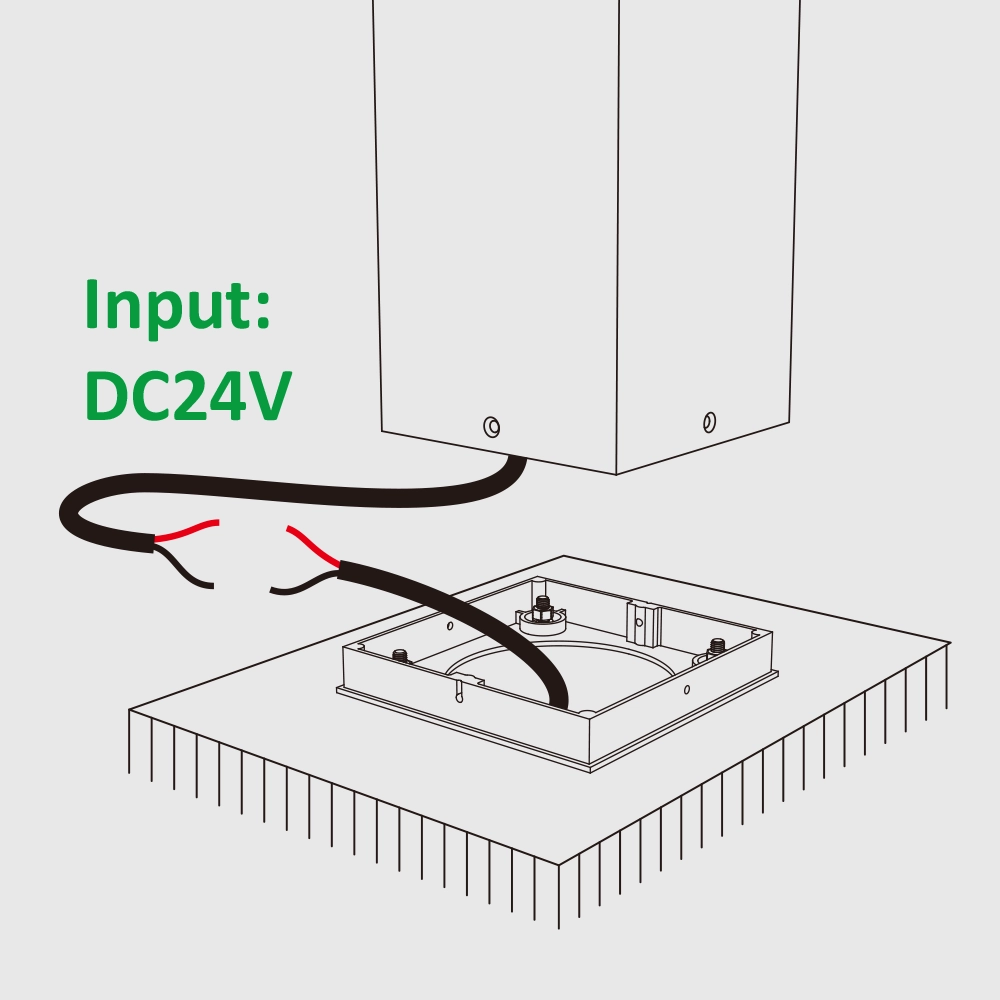

2.Connect power supply

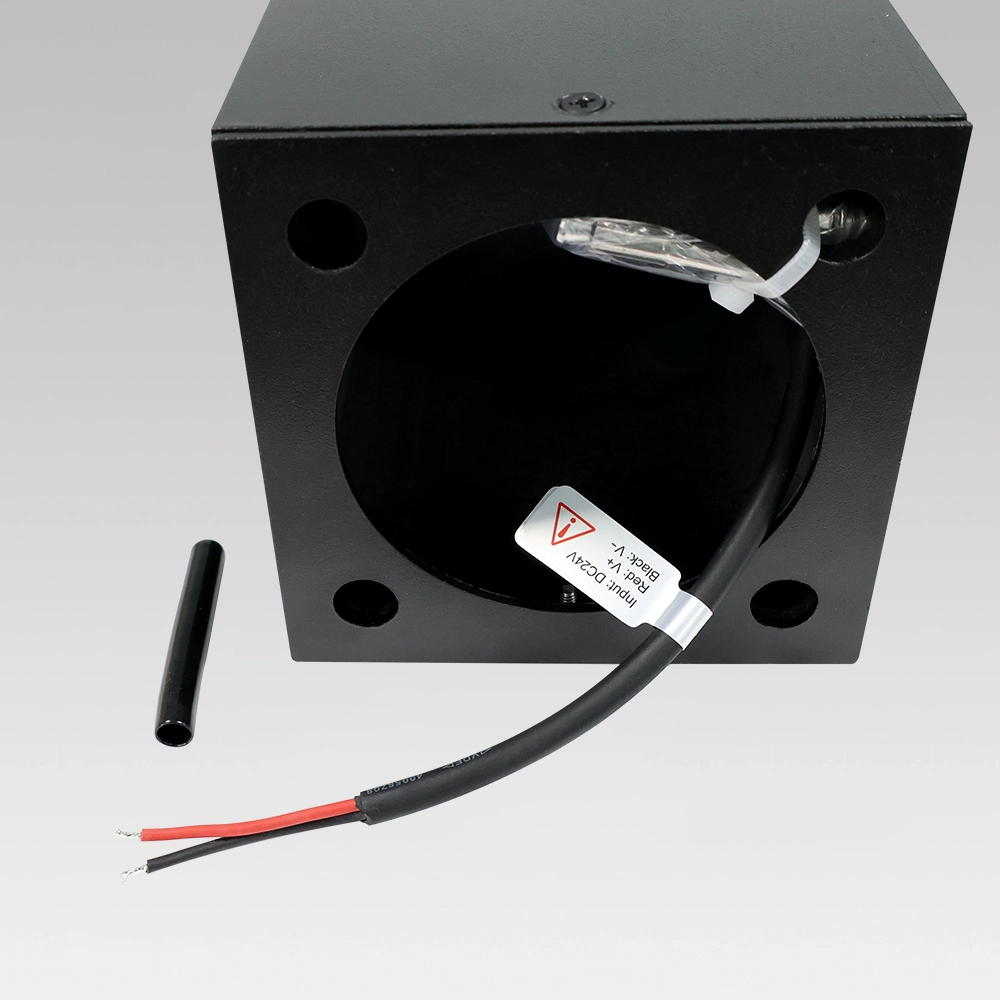

Ο Red：V+
Ο Black：V-

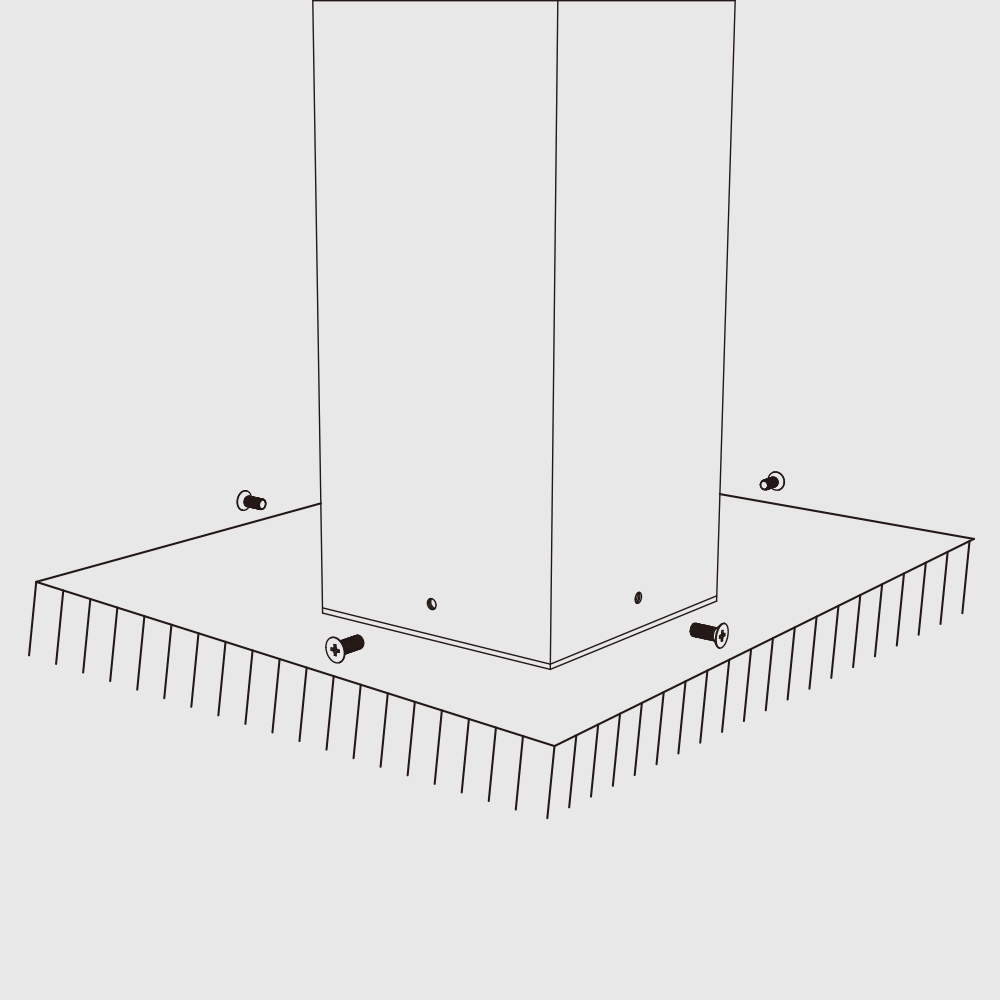

3.Locking screw

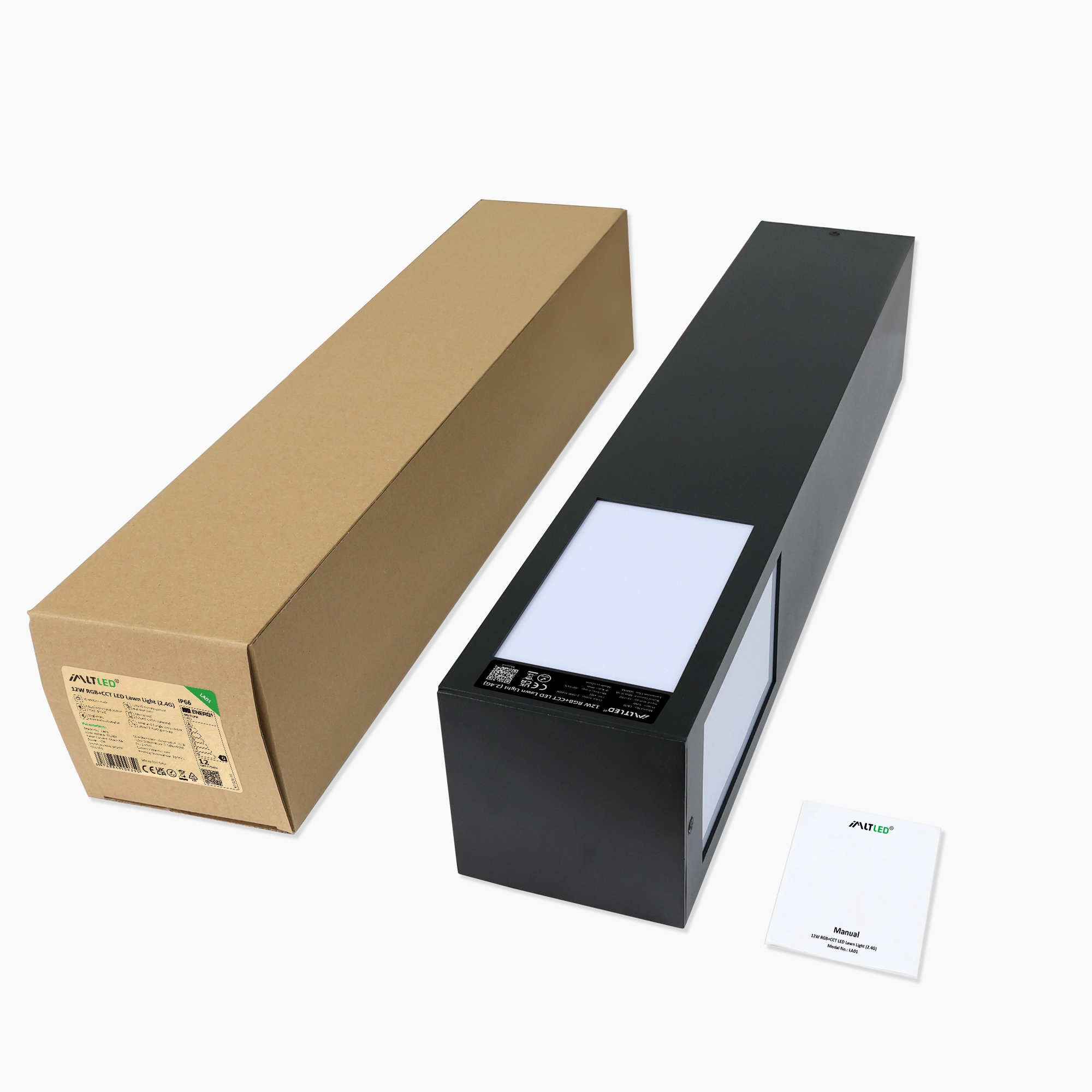

Package
Law Light: 1PCS
Manual: 1PCS
Quantity: 1PCS

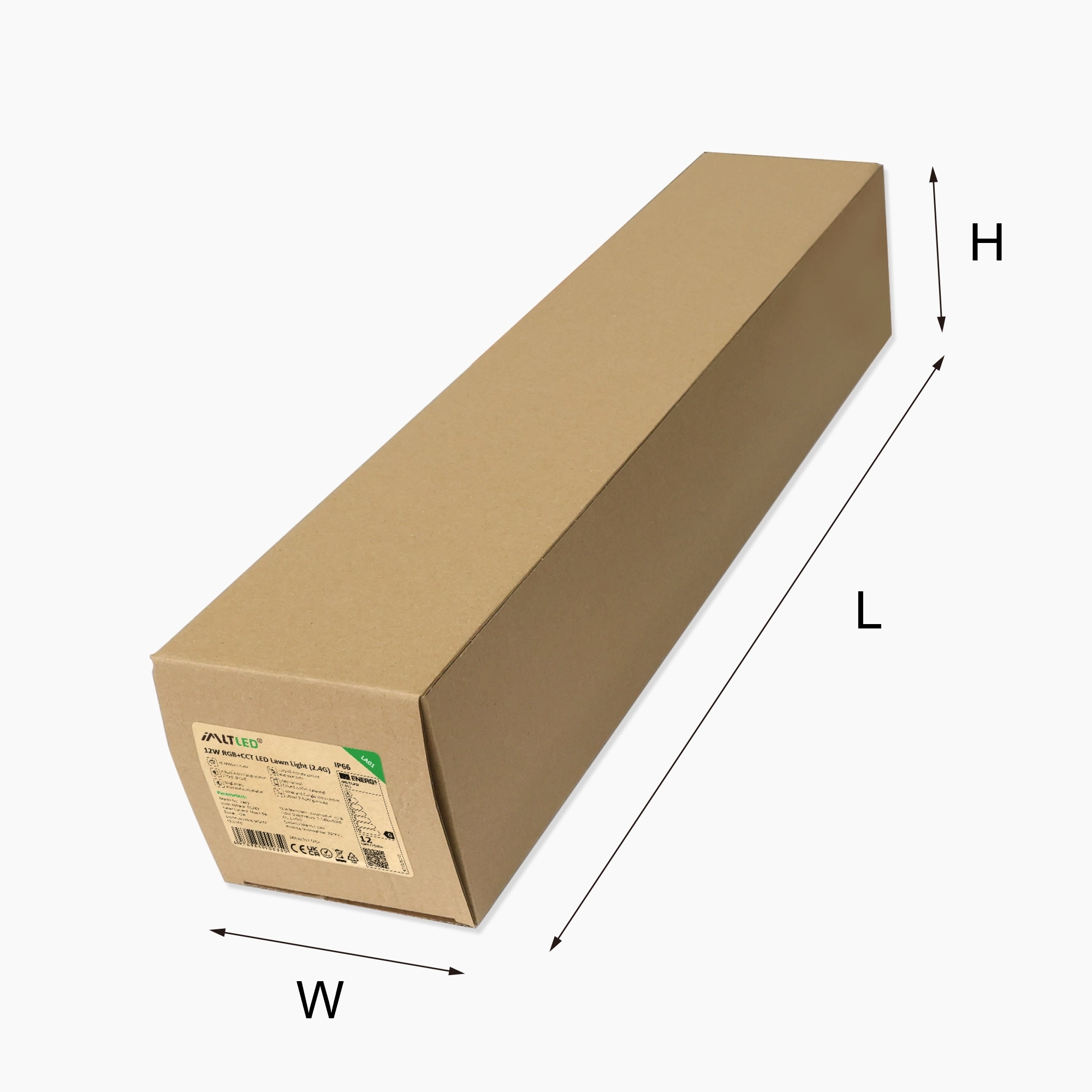

Packing size: 610*128*125mm (L*W*H)
Packaging weight: 2.23KGS
CTN QTY: 6 PCS
MEAS: 630*420*270mm (L*W*H)
Volume: 0.0714m³
N.W.: 13.38KGS
G.W.: 13.78KGS
